| Type | High Solar Shading |
| Thickness | Glass thinnest thickness: 22mm (3mm+16A+3mm). Standard configuration:4 / 5mm+19A+ optional glass pane. |
| Other Colors | Clear, Ultra Clear, Grey,Bronze,etc. |
| Standard Size | Glass Max.Size:2000x2500mm |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP,D/P,O/A. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Paper interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |
| Type | High Solar Shading |
| Thickness | Glass thinnest thickness: 22mm (3mm+16A+3mm). Standard configuration:4 / 5mm+19A+ optional glass pane. |
| Other Colors | Clear, Ultra Clear, Grey,Bronze,etc. |
| Standard Size | Glass Max.Size:2000x2500mm |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP,D/P,O/A. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Paper interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |

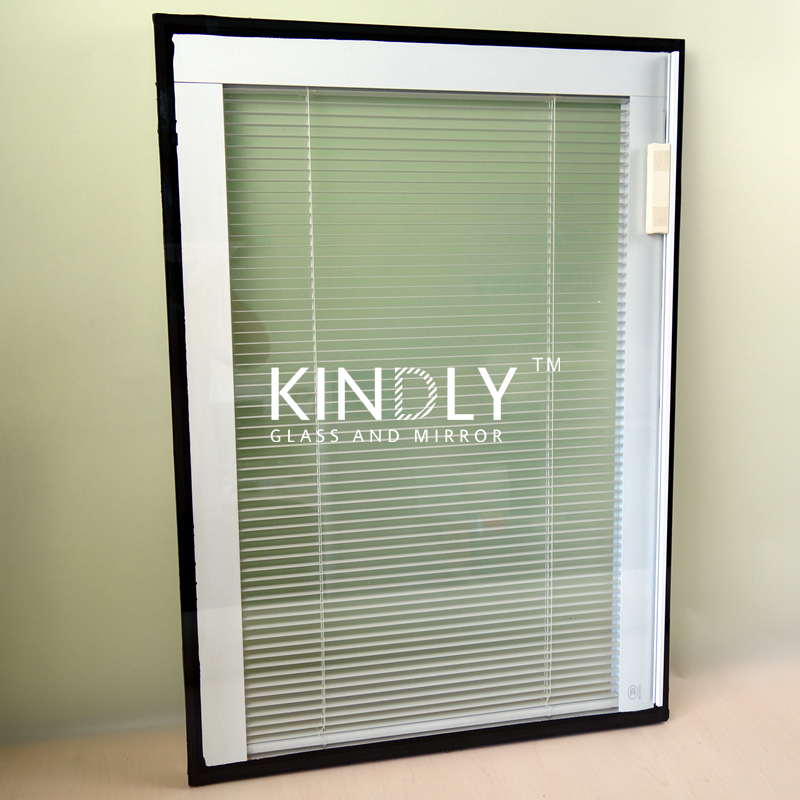

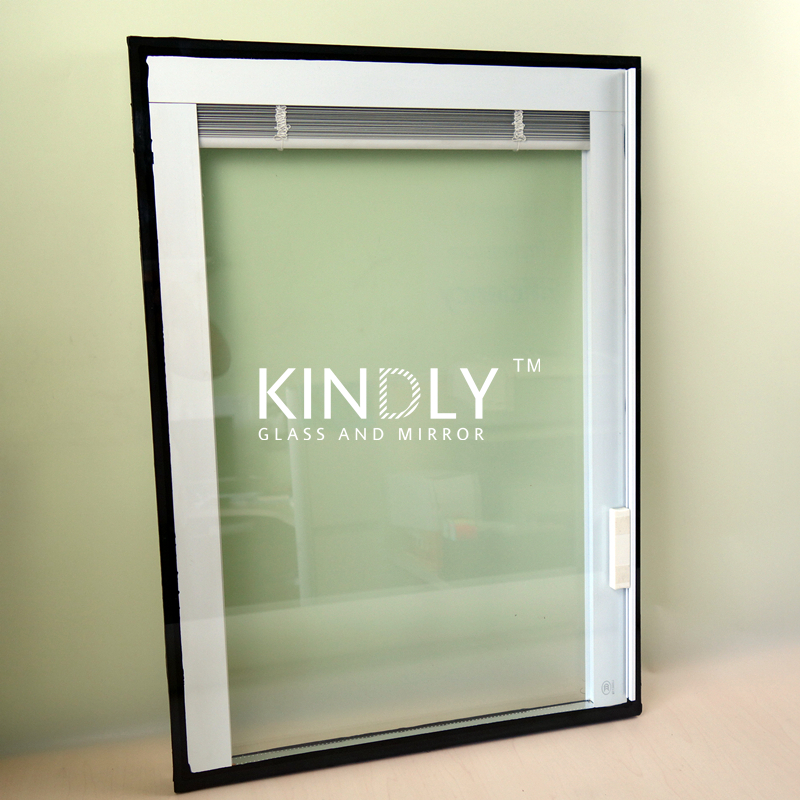

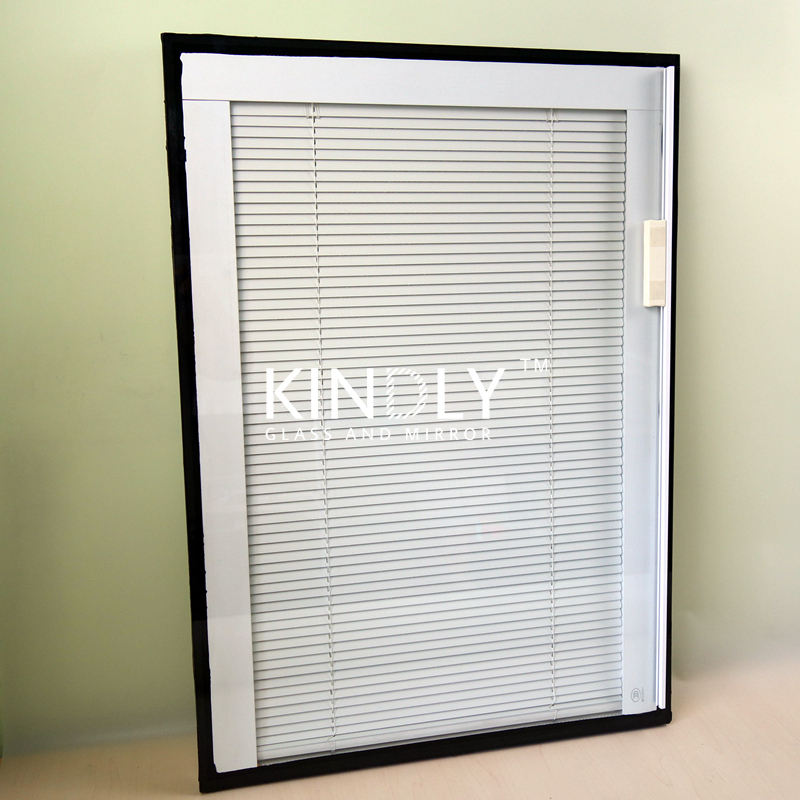

Workable by magnet, tilting and lifting the slats inside the IGU from open to close as well as rise the internal blinds maximum to get the expose functional.
Features
*Various size for custom.
*Ideal for doors and windows.
*Magnet workable for tilt and lift.
*Independent integral control system.
Specification
*Glass thinnest thickness: 22mm (3mm+16A+3mm).
*Standard configuration:4 / 5mm+19A+ optional glass pane.
*Glass Max.Size:2000x2500mm
*Blade material: Aluminum magnesium.
*Blade color:Powder coated Ral9003.
*Controller:Magnet with plastic cover Ral9010 / 9005.
*Internal frame material: Aluminum profile powder coated Ral9003.
Advantage
*Environmental protection and energy conservation
In summer, the built-in blinds will be fully expanded, aluminum magnesium blades can effectively block direct sunlight and surrounding objects to the indoor far-infrared light, while the built-in blinds can also prevent the formation of air convection, play a role in insulation.
*Heating and insulation
In winter, built-in shutters are fully closed, sunlight can be directly shot into the room during the day, gather heat indoors, have heating effect;The inner blinds can be fully opened at night, which can effectively reduce the heat loss to the outside and keep warm.
*Soundproofing / radiation insulation
The 20mm oversized air layer, coupled with the built-in blinds, provides a better sound insulation, and aluminum-magnesium blinds block light from a variety of bands.
*Anti-frost / fireproof
Insulating glass has excellent air and water tightness, which blocks the penetration of external air and avoids the formation of freezing phenomenon.Tempered glass and aluminum and magnesium blades are not exposed to open flame and will not release smoke, effectively reducing the harm of flame spread.In the production and use of no pollution, seal when the louver is not contaminated, to avoid complex cleaning, and not easy to produce light pollution.
*Dustproof / dirt proof / easy to clean
The structure of insulating glass is formed, which blocks the air and material outside the insulating glass from permeating into the air inside the insulating glass, plays the role of dust prevention and pollution prevention, and is not affected by external forces. It is not easy to be damaged and lasts as long as new.Built-in louvers require no cleaning.
*Multi-angle dimming
The built-in louvre can be rotated 180 degrees at any height, freely adjusting to the lighting angle required by the user.
Kindly processed glasses Products are fully accredited to enable you to buy with confidence. Our accreditation include:
ISO9001 | China GB | EN(European Norm) | ANSI(American National Standards Institute) | AS/NZS
Kindly Glass & Mirror is a professional supplier of glass panels and good manufacturer of processed glass panels.
