| Type | Double Silver LowE |
| Thickness | IG Thickness 3/8”（6mm), 1/2”(12mm), 3/4″(19mm), 13/16″(20mm), 7/8″(22mm), 15/16”(24mm), 1″(25mm) |
| Other Colors | Single Glass Type Can Be Clear Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Hard Coated / Soft Coated Low-E Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Bronze,Grey,Blue,Green Tinted Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Bronze,Grey,Blue,Green Solar Control Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Laminated Glass (33.1mm,44.2mm,55.2mm ) Acid Etched Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Glazed Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Fire-resistance Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”, 8mm - 5/16”) |
| Standard Size | Min.:300x300mm Max.:2500x6000mm |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Paper or powder interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |
| Type | Double Silver LowE |
| Thickness | IG Thickness 3/8”（6mm), 1/2”(12mm), 3/4″(19mm), 13/16″(20mm), 7/8″(22mm), 15/16”(24mm), 1″(25mm) |
| Other Colors | Single Glass Type Can Be Clear Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Hard Coated / Soft Coated Low-E Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Bronze,Grey,Blue,Green Tinted Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Bronze,Grey,Blue,Green Solar Control Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Laminated Glass (33.1mm,44.2mm,55.2mm ) Acid Etched Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Glazed Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Fire-resistance Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”, 8mm - 5/16”) |
| Standard Size | Min.:300x300mm Max.:2500x6000mm |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Paper or powder interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |

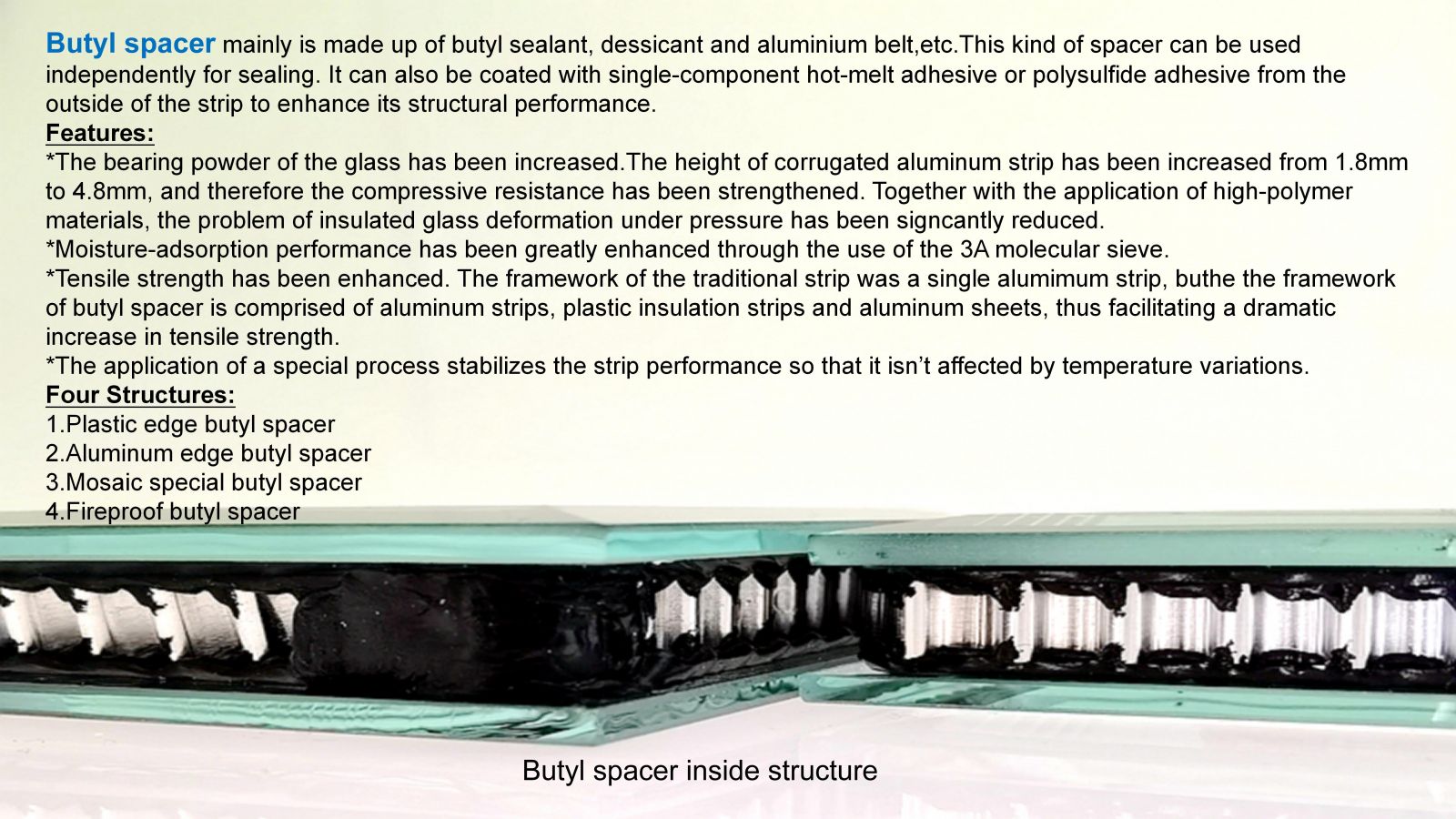

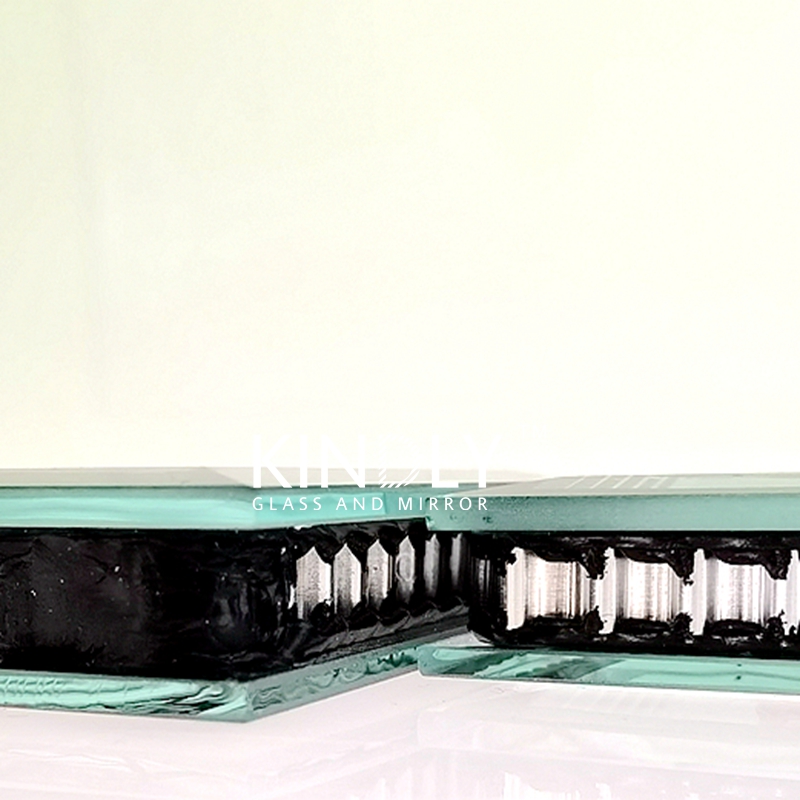

Butyl spacer mainly is made up of butyl sealant, dessicant and aluminium belt,etc.This kind of spacer can be used independently for sealing. It can also be coated with single-component hot-melt adhesive or polysulfide adhesive from the outside of the strip to enhance its structural performance.
Features:
*The bearing powder of the glass has been increased.The height of corrugated aluminum strip has been increased from 1.8mm to 4.8mm, and therefore the compressive resistance has been strengthened. Together with the application of high-polymer materials, the problem of insulated glass deformation under pressure has been signcantly reduced.
*Moisture-adsorption performance has been greatly enhanced through the use of the 3A molecular sieve.
*Tensile strength has been enhanced. The framework of the traditional strip was a single alumimum strip, buthe the framework of butyl spacer is comprised of aluminum strips, plastic insulation strips and aluminum sheets, thus facilitating a dramatic increase in tensile strength.
*The application of a special process stabilizes the strip performance so that it isn’t affected by temperature variations.
Four Structures:
1.Plastic edge butyl spacer
2.Aluminum edge butyl spacer
3.Mosaic special butyl spacer
4.Fireproof butyl spacer
Kindly processed glasses Products are fully accredited to enable you to buy with confidence. Our accreditation include:
ISO9001 | China GB | EN(European Norm) | ANSI(American National Standards Institute) | AS/NZS
Kindly Glass & Mirror is a professional supplier of glass panels and good manufacturer of processed glass panels.
