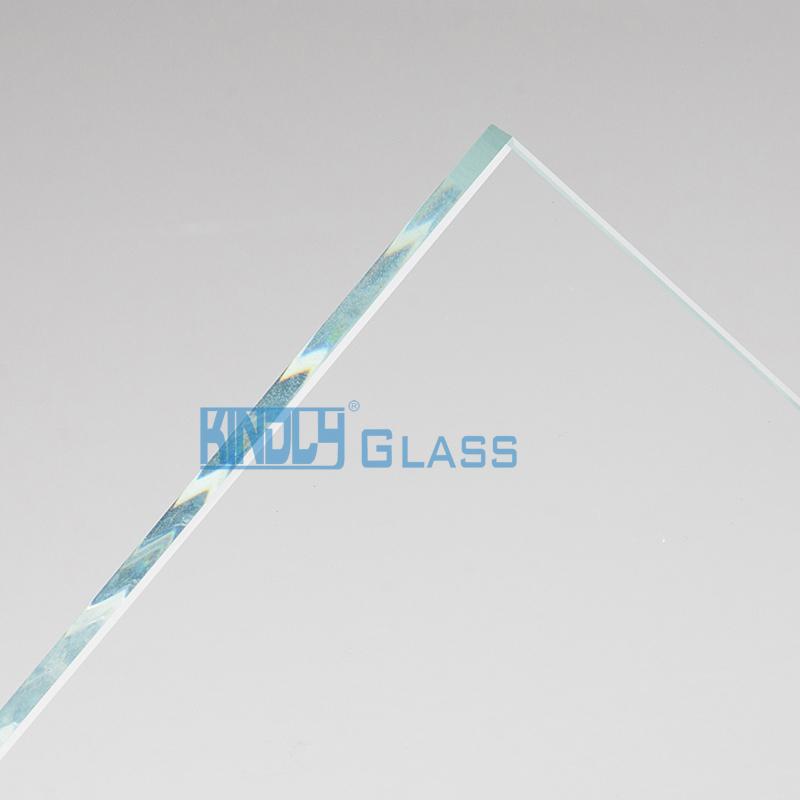

Tempered Shower Room Glass

Tempered Shower Room Glass Tempered Shower Room Glass Tempered Shower Room Glass Tempered Shower Room Glass
Type Home Deco Tempered Glass
Thickness 2, 3, 4, 5, 6, 8, 10, 12, 15, 19, 22, 25mm
Other Colors French Green (Light Green),Dark Green(Natural Green);

Ford Blue, Dark Blue (Diamond Blue);

Ocean Blue, Kunshan Blue, Crystal Blue;

Euro Bronze(Grey Bronze), Golden Bronze, Pink;

Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 100x100, 1650 x 2440,1830 x 2440, 1650 x 2140,
2140 x 3300/3660,2250 x 3300/3660, 2440 x 3300/3660
3000x14000 mm
Jumbo Size 3000x14000 m
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Home Deco Tempered Glass
Thickness 2, 3, 4, 5, 6, 8, 10, 12, 15, 19, 22, 25mm
Other Colors French Green (Light Green),Dark Green(Natural Green);

Ford Blue, Dark Blue (Diamond Blue);

Ocean Blue, Kunshan Blue, Crystal Blue;

Euro Bronze(Grey Bronze), Golden Bronze, Pink;

Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 100x100, 1650 x 2440,1830 x 2440, 1650 x 2140,
2140 x 3300/3660,2250 x 3300/3660, 2440 x 3300/3660
3000x14000 mm
Jumbo Size 3000x14000 m
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Tempered glass

is two or more times stronger than annealed glass. When broken, it shatters into many small fragments which prevent major injuries. This type of glass is intended for glass façades, sliding doors, building entrances, bath and shower enclosures and other uses requiring superior strength and safety properties.

Production:   There are two different methods used to produce tempered glass:

Heat treating: Where the annealed glass is subjected to a special heat-treatment in which it is heated to about 680°C and afterwards cooled. If it is cooled rapidly, the glass is up to four times stronger then annealed glass and its breaks into many small fragments (fully-tempered). If it is cooled slowly, the glass is twice as strong as annealed glass and the fragments of the broken glass are linear and more likely to remain in the frame.

Chemical Strengthening: The glass is covered by a chemical solution which produces a higher mechanical resistance. Chemically-strengthened glass has similar properties to thermal-treated glass. The product is not generally used for window glass, but more commonly seen in industries where thin, strong glass is needed.

Applications:

1.  Building:Glass Curtain Wall,Windows and Doors, Roof, Office Partition,etc.

2.  Home Deco:Bathroom Glass,Table Glass,Glass Shelf,Splash Proof Kitchen Glass,Kitchen Cutting Board, Writing

     Board,Swimming Pool Glass,Railing Glass,etc.

3.  Solar Photovoltaic:Ultra Clear Prismatic Cover Glass

4.  Aerospace Field:Air Craft Windshield Glass.

5.  Ships: Cabin and Yacht Glass.

6.  Optics:Laboratory Instrument Glass.

7.  Automobile and Rail Transit:Windscreen, Platform Screen Glass.

Tempered glass process instruction:

Thickness Available Color Flat Tempered Curved Tempered Other Curved Solution Edge Work Corner &  Processing Subsequent Process
Min.Size Max.Size Min.Size Max.Size Min.Radius
2 Clear 10 x 10mm 1000 x 1000mm / / / Hot Bending Flat ,Pencil Fillets,Chamfers,Cutouts,Notches, Holes,Engrave Laminated , Silk-Screen,  Lacquered
3-3.7 Clear,LowE,Bronze,Blue,Green 10 x 10mm 1000 x 2000mm / / / Hot Bending Flat ,Pencil Laminated, Insulated, Silk-Screen,  Lacquered
4,5,6,8,10,12 Clear,LowE,Bronze,Blue,Green,Grey,Pink tinted and reflective glass, Patterned Glass(4,5,6,8mm) 10 x 10mm (2430-3290)x (3660- 6500)mm 500 x 500mm 2440 x 4800mm 450mm / Double,Multi-Curved Hot Bending Flat,Pencil,  Bevel,Ogee,Waterfall, Convex Laminated, Insulated, Silk-Screen,  Lacquered
15,19 Clear, Soft LowE 25 x 25mm 3290 x 15000mm 500 x 500mm 2440 x 4800mm 1500mm / Double,Multi-Curved Hot Bending Flat,Pencil,  Bevel,Ogee,Waterfall, Convex Laminated, Insulated, Silk-Screen,  Lacquered
22,25 Clear 50 x 50mm 3290 x 15000mm 500 x 500mm 2440 x 4800mm 1500mm / Double,Multi-Curved Hot Bending Flat,Pencil,  Bevel,Ogee,Waterfall, Convex Laminated, Insulated, Silk-Screen,  Lacquered


 Tempered glass packing details:

Interlayer Protection Corner Packing Edge Packing Inner Packing Outer Packing LCL Packing
Anti-Fngicide Paper Right Angle Plastic Corner  EPS Side Fender Paper Wrap Plywood Crate Case Min.Width > 650mm   Max.Length <1500mm    Max. Height < 1200mm
Anti-Fngicide Powder Plump Plastic Corner   Single-layer Paperboard Plywood Case Case + L Rack with Four-sided Forklift
EPE Film Paperboard Corner   Double-layer Paperboard Plywood Pallet Crate A-type Case
Cork Mat EPS Corner   Carton Nude Packing + A Rack Pallet Case
EPS Board     PVC,EPE Shrink Film



Related Products

Kindly processed glasses Products are fully accredited to enable you to buy with confidence. Our accreditation include:

ISO9001    |    China GB    |    EN(European Norm)    |    ANSI(American National Standards Institute)    |    AS/NZS

Kindly Glass & Mirror is a professional supplier of glass panels and good manufacturer of processed glass panels.
