Crafts Mirror

Crafts Mirror Crafts Mirror Crafts Mirror Crafts Mirror
Type Sheet Glass
Thickness 0.8,1.0,1.1,1.2,1.3,1.4,1.5,1.6,1.7,1.8, 2.0, 2.3, 2.5, 2.7mm
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.

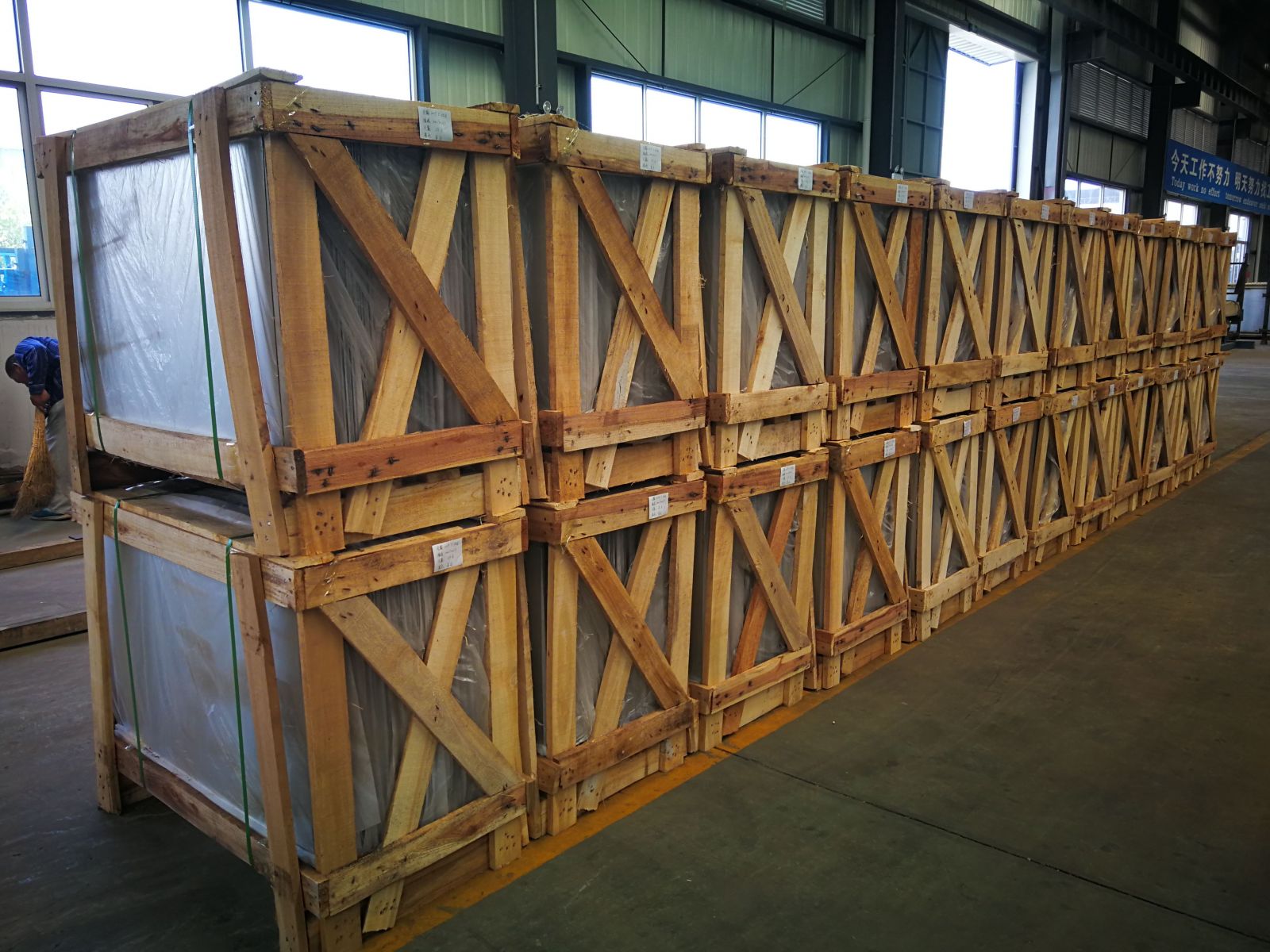

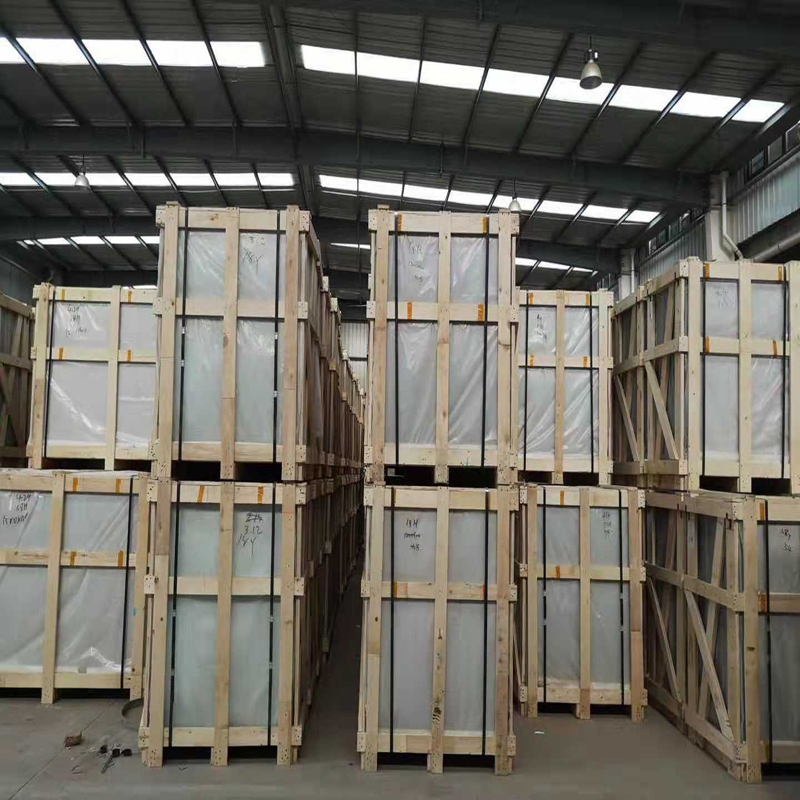

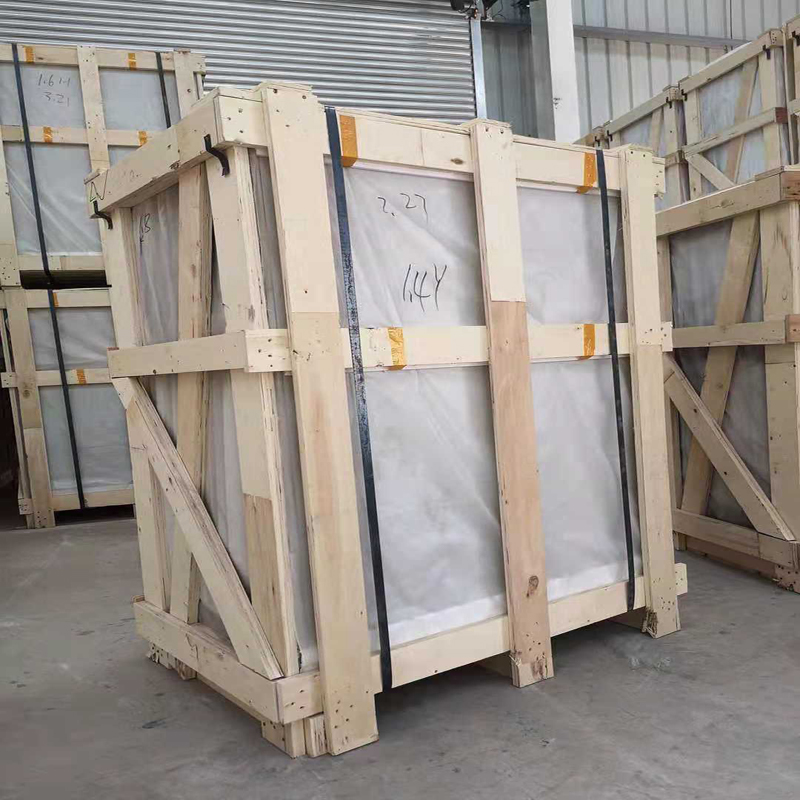

Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Sheet Glass
Thickness 0.8,1.0,1.1,1.2,1.3,1.4,1.5,1.6,1.7,1.8, 2.0, 2.3, 2.5, 2.7mm
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Sheet glass production process was invented in 1961 by Gravibel

manufacturing company in Belgium.With today's world, compared to the dominant float glass, sheet glass process combines the slotless method and colburn process, using the forming pool of slotless method and the veer of colbum process, achieve the goal of from the free surface control plate glass, can successfully control the thickness of 0.8 to 12 mm glass, its biggest characteristic is can long-term stable production of 3 millimeter thin glass, and good flatness and thickness difference is small, the product quality is excellent.The ultra-thin glass is mainly used in instrumentation,electronics,

medical slides,horologe, lamps and craft frames and mirrors manufacturing.

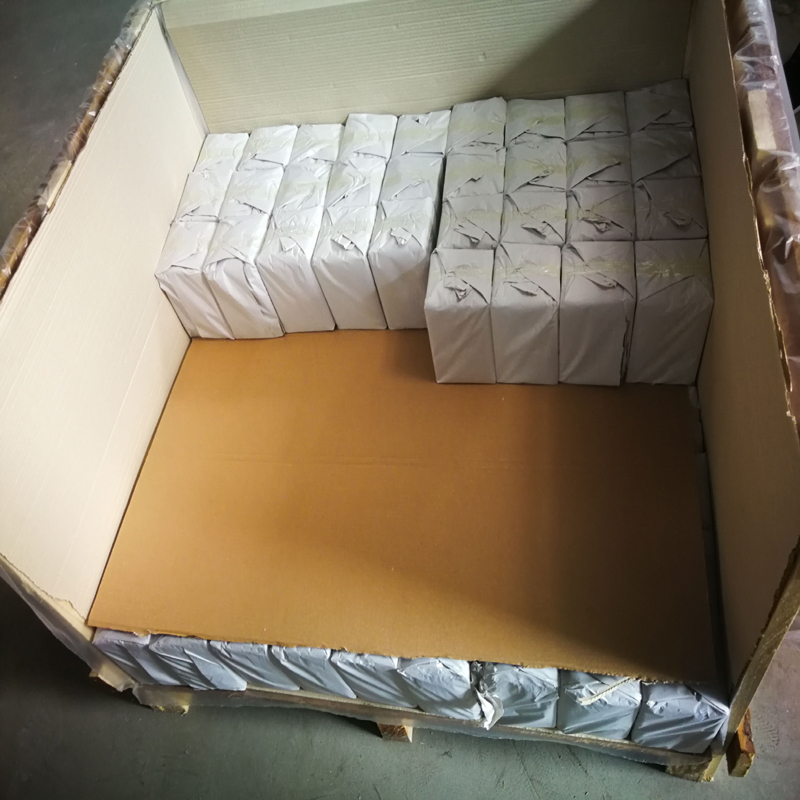

Ultra-thin Sheet Glass Packing
Thickness Size in mm Shts/Crate Crts/20'FCL Sqm/20'FCL Weight in Tons
0.80 610 930 625 36 127642.50 25.53
1.00 610 930 500 36 102114.00 25.52
1.10 610 930 455 36 92923.74 25.55
1.3 600 900 450 32 7776.00 25.27
700 1000 450 26 8190.00 26.62
914 1220 450 16 8028.58 26.09
1.4 600 900 420 32 7257.60 25.40
700 1000 420 26 7644.00 26.75
914 1220 420 16 7493.34 26.23
1.5 600 900 395 32 6825.60 25.60
700 1000 395 26 7189.00 26.96
914 1220 396 16 7065.15 26.49
1.6 600 900 370 32 6393.60 25.57
700 1000 370 26 6734.00 26.94
914 1220 370 16 6601.27 26.41
1220 1830 265 11 6508.03 26.03
1.7 600 900 350 32 6048.00 25.70
700 1000 350 26 6370.00 27.07
914 1220 350 16 6244.45 26.54
1220 1830 250 11 6139.65 26.09
1.8 600 900 330 32 5702.40 25.66
700 1000 330 26 6006.00 27.03
914 1220 330 16 5887.62 26.49
1220 1830 240 11 5894.06 26.52
2 1220 1830 215 11 5280.10 26.40
2.3 1220 1830 190 11 4666.13 26.83
2.5 1220 1830 175 11 4297.76 26.86
2.7 1220 1830 160 11 3929.38 26.52
Other size can be customized as requested.
